Product Details:
|
| Material: | Carbon Steel,High Manganese Steel,Carbide | Use: | Well Drilling,Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Symmetrix Casing,Odex Overburden System | Machine Type: | Drilling Tool,Drilling Equipment |
| Processing Type: | Forging | Product Name: | Concentric Casing System,odex Drilling System |
| Color: | Gold,Request,Yellow,Red | Application: | Quarry,construction,mining,water Well Drilling,mining Or Welling Drilling |
| Usage: | Mining&Construction&Water Well DrillingHole Drilling,Mining&Construction&Water Well Drilling | Advantage: | High Performance,High-efficiency |
| Model Type: | Cop,Halco,DHD,Mission,NUMA | Name: | Overburden Concentric Casing Drilling System |
| Item: | Drilling Hammer Bit Eccentric Overburden Systems,Overburden Drilling Casing System | Hammer Type: | DHD3.5 DHD340 DHD350 DHD360 DHD380 DHD110 DHD112,SD-6,QL60 |
| Button Shape: | Domed Buttons,Spherical/Ballistic/Parabolic/Sharp/Flat,and Ballistic Shapes Buttons | Advantages:: | High Strength,hign Abrasion Risistance,High Performance,High Quality And Factory Prices |
| High Light: | 478mm Overburden Casing Drilling System, MRS Overburden Casing Drilling System, Symmetric Casing Drilling Bit | ||

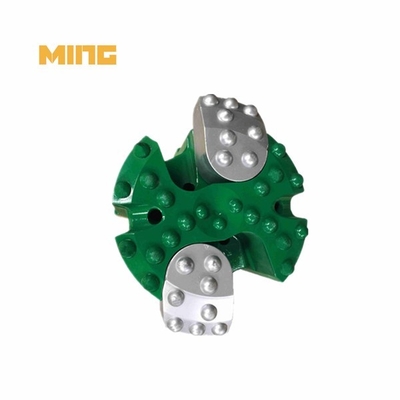

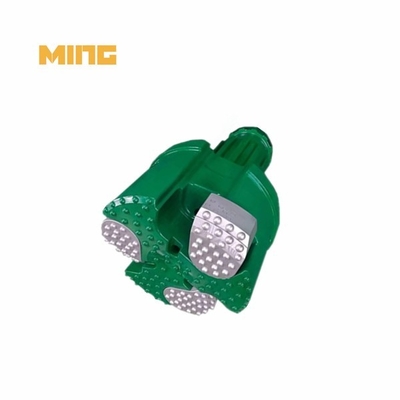

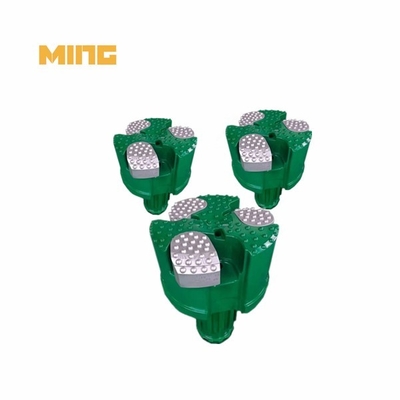

Product name: 478mm MRS410 N125 Shank Concentric Casing Drilling System Bit For Coal Mining Equipment
OD of casing pipe: 410mm
Operating this advanced equipment is a breeze, thanks to its user-friendly design. With just a few simple steps, you can effectively use this drill bit to accomplish various drilling tasks with ease and precision.
In addition to its exceptional drilling speed, the MRS Concentric Casing Drilling Bit also offers stable and reliable performance. You can trust this tool to consistently deliver precise and accurate results, ensuring a smooth drilling experience every time.
Invest in the MRS Drill Bit and witness the transformation in your drilling projects. With its structural optimization, high strength, easy operation, superior performance, high drilling speed, and stable reliability, this drill bit sets new standards in the industry.

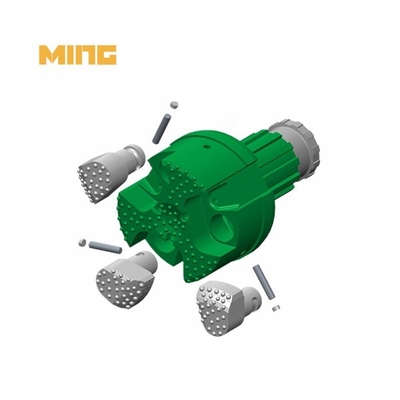

Product components:
1. Pilot bit+3PCS wiggle wings+casing shoe
2. Pilot bit+4PCS wiggle wings+casing shoe
Production details:
| Model | Hole dia.(mm) | Weight (KG) | Closed dia(mm) | Pilot dia (mm) | Total length (mm) | Case Dia (OD*ID) | Spline |
| MK-MRS190 | 238 | 80 | 190 | 203 | 550 | 219*206 | DHD360,QL6,SD6 |
| MK-MRS215 | 276 | 100 | 215 | 236 | 590 | 254*240 | DHD380,QL8,SD8 |
| MK-MRS235 | 293 | 110 | 236 | 251 | 590 | 273*254 | DHD380,QL8,SD8 |
| MK-MRS240 | 293 | 115 | 241 | 256 | 590 | 273*260 | DHD380,QL8,SD8 |
| MK-MRS280 | 345 | 180 | 280 | 300 | 740 | 323*302 | SD10 |
| MK-MRS315 | 373 | 240 | 315 | 336 | 1050 | 356*337 | N120 |
| MK-MRS365 | 432 | 350 | 365 | 381 | 1100 | 406*387 | N120,N125 |
| MK-MRS410 | 478 | 460 | 412 | 430 | 1100 | 457*435 | N125 |
| MK-MRS460 | 530 | 585 | 460 | 475 | 1100 | 508*483 | N125,SD18 |
| MK-MRS510 | 580 | 860 | 509 | 527 | 1180 | 559*533 | N180,SD18 |
| MK-MRS560 | 635 | 910 | 560 | 581 | 1180 | 610*584 | N180,SD18 |
| MK-MRS610 | 695 | 1100 | 600 | 630 | 1200 | 660*632 | N240 |
| MK-MRS660 | 735 | 1200 | 656 | 681 | 1207 | 711*685 | N240 |
| MK-MRS710 | 785 | 1480 | 710 | 730 | 1207 | 762*736 | N240 |
| MK-MRS745 | 838 | 1650 | 745 | 776 | 1207 | 813*780 | N240 |
How to order:
Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
Other size of MRS system is available upon customer's request
Product Application:
It is suitable for drilling water wells , geothermal wells , short micro piles ,medium mini-type grouting hole of building , dam and harbour project.
RFQ:
1. What does odex drilling entail?
ODEX is an adaptation of the air-operated down-the-hole hammer. Using an eccentric bit that swings out, it reams the bottom of the casing. Cuttings exit through a swivel and onto the ground or a sample collector after emerging through the drive sub and casing annulus. Remove the cuttings as soon as possible.
2. What PSI is required for air tools?
Ranging from 70 to 90 PSI
Most air tools require between 70 and 90 PSI. Any light-to-medium duty air compressor can easily reach 90 PSI, but it's always a good idea to have the compressor producing more flow than is necessary. Expert Opinion: Never discount a PSI score. The instrument will not operate correctly if there is not enough air volume.
3. How Functioning Are Casing Advancers?
The Casing Advancer's design allows for the simultaneous, integrated completion of drilling and casing. By taking out the drill rod string and rock bit from the large diameter hole and then reaming the casing back into the hole, this function saves time and work.
