Product Details:
|
| Certification: | ISO9001 | Material: | High Carbon Steel,Tungsten Carbide,steel |
|---|---|---|---|
| Use: | Metal Drilling, Rock Drilling | Product Name: | Shank Adapter |
| Shank: | Straight Shank | Color: | Red/Blue/Black/golden,according To Customer's Requirement |
| Process: | Forging,Fully Ground | Quality: | Stable And Reliable,best Quality |
| Machine Type: | Drilling Tool | ||
| High Light: | COP1838 Well Drilling Shank Adapter,R38 Thread Drilling Shank Adapter,640MM DTH Shank Adapter |
||

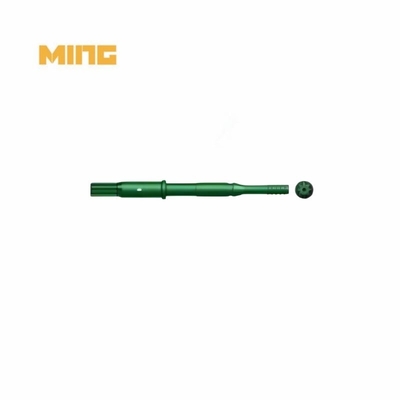

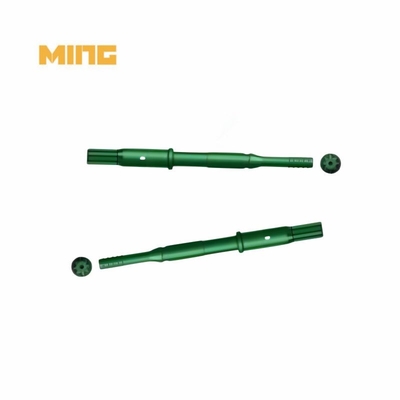

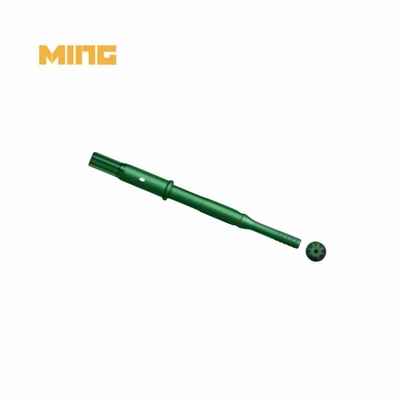

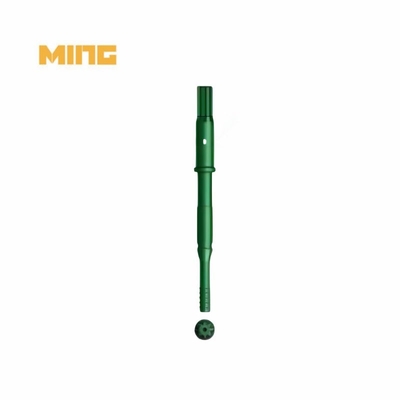

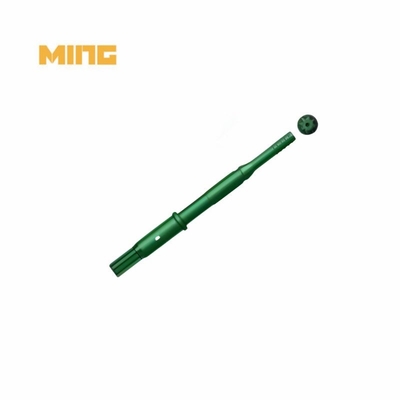

Product name: 640MM R38 Thread Atlas Copco COP 1440, COP1838 Shank Adapter For Well Drilling
Product category: Shank adapter
Matched: Atlas Copco COP 1440, COP1838
Thread: R38
Length: 640MM
KINGDRILLING shank adapter description:
KINGDRILLING shank adapters are carburized, CNC machined, and composed of premium steel, ensuring excellent toughness and anti-fatigue strength to suit the most stringent drilling requirements.
The drill string is equipped with a shank adapter that transfers rotation torque, feed force, impact energy, and flushing media.
KINGDRILLING shank adapter features:
- Achieve high drilling quality with our shank adapter, ensuring precise and efficient drilling operations.
- Experience fast driving speed and high working efficiency, increasing productivity on the job site.
- Benefit from the long service life of our shank adapter, providing durability and reliability for extended use.
- Enjoy a higher impact rate with lower energy consumption, saving costs while maintaining superior performance.
- Ideal for various drilling applications, our shank adapter is a versatile tool for professionals in the industry.
| Item | Thread | Length | Diameter | Weight | Flushing Tube |
| mm | mm | kg | mm | ||
| Atlas Copco COP 1440, COP 1550, COP 1838 Bench Drilling |
R32 (1 1/4") | 525 | 52 | 5.7 | - |
| T38 (1 1/2") | 525 | 52 | 5.9 | - | |
| T45 (1 3/4") | 525 | 52 | 6.1 | - | |
| T51 (2") | 525 | 52 | 6.5 | - | |
| Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238 Drifting |
R32 (1 1/4") | 435 | 38 | 3.6 | - |
| R38 (1 1/2") | 435 | 38 | 3.9 | - | |
| T38 (1 1/2") | 435 | 38 | 3.8 | - | |
| Atlas Copco COP 1440, COP1838 Bolting - SDA |
R32 (1 1/4") | 640 | 52 | 7.5 | - |
| Atlas Copco COP 1440, COP 1838 Bolting- SDA, IRIA |
R32 (1 1/4") | 640 | 52 | 9.1 | - |
| R38 (1 1/2") | 640 | 52 | 8.9 | - | |
| Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238 Bench Drilling |
R32 (1 1/4") | 585 | 38 | 4.2 | - |
| R38 (1 1/2") | 525 | 38 | 4.3 | - | |
| T38 (1 1/2") | 525 | 38 | 4.3 | - | |
| Atlas Copco COP 1440, COP1550, COP 1638, COP 1838 Bolting, Drifting |
T38 (1 1/2") | 435 | 38 | 3.9 | - |
| Atlas Copco COP 1638, COP 1838AW Drifting |
R38 (1 1/2") | 455 | 38 | 4.1 | - |
| T38 (1 1/2") | 455 | 38 | 4.1 | - | |
| Atlas Copco COP 1638, COP 1838AW Longhole Drilling |
R32 (1 1/4") | 525 | 38 | 4.3 | - |
| T38 (1 1/2") | 525 | 38 | 4.5 | - |
KINGDRILLING shank adapter application:
1. Be used for bench blasting, underground mining, and tunneling operations.
2. The Kingdrilling shank adapter effectively transfers torque, feed force, impact energy, and flushing medium to the drill string.
3. Specially selected alloy steel, which is additionally carburized, ensures the strong impact power of current rock drills.
4. Various shanks can be created based on the samples and model of the rock drill.
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
3. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
4. Shipping way.
Sample order: We suggest Courier express like DHL/UPS/FEDEX or by air/by train.
Bulk order: We suggest by air or by sea.
5. After Services.
1. Our sales team will response for your question within 24 hours (Holidays Excluded)
2. Technical Support will be available in any time.
