Product Details:
|
| Material: | High Carbon Steel,Tungsten Carbide,steel | Use: | Metal Drilling, Rock Drilling |
|---|---|---|---|
| Product Name: | Shank Adapter | Shank: | Straight Shank |
| Color: | Red/Blue/Black/golden,according To Customer's Requirement | Certification: | ISO9001 |
| Process: | Forging,Fully Ground | Quality: | Stable And Reliable,best Quality |
| Machine Type: | Drilling Tool | ||
| High Light: | R38 Thread Shank Adapter,COP 1838 Shank Adapter,455MM Mining Shank Adapter |
||

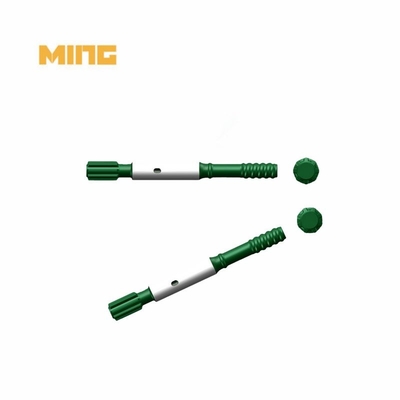

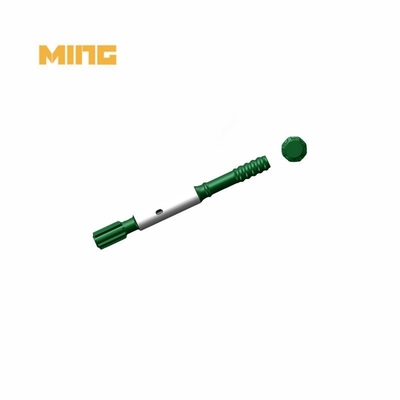

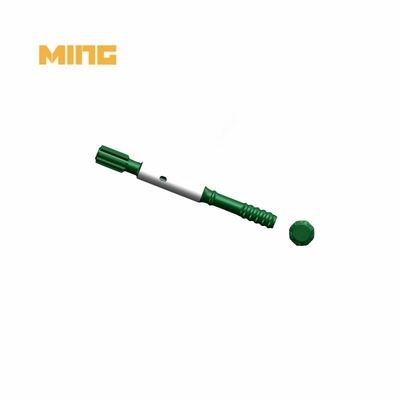

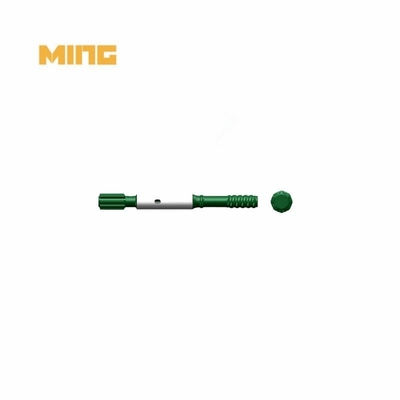

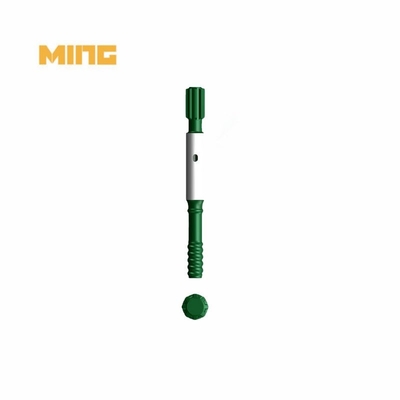

Product name: R38 Thread 455MM Atlas Copco COP 1638, COP 1838 Shank Adapter For Mining
Product category: Shank adapter
Matched: Atlas Copco COP 1638, COP 1838
Thread: R38
Length: 455MM
KINGDRILLING shank adapter description:
KINGDRILLING shank adapters are carburized, CNC machined, and composed of quality steel, ensuring excellent toughness and anti-fatigue strength for the most demanding drilling circumstances.
The shank adapter transmits rotation torque, feed force, impact energy, and flushing medium to the drill string.
KINGDRILLING shank adapter features:
- Achieve high drilling quality with the shank adapter, ensuring precise and reliable results.
- Experience unparalleled fast driving speed, maximizing efficiency and reducing project timelines significantly.
- Benefit from the shank adapter’s superior impact rate, resulting in higher productivity and lower energy consumption.
- Constructed from durable materials for a long service life, guaranteeing consistent performance in demanding drilling conditions.
- Ideal for a wide range of applications, from mining to construction, offering versatility and reliability in every project.
| Item | Thread | Length | Diameter | Weight | Flushing Tube |
| mm | mm | kg | mm | ||
| Atlas Copco COP 1440, COP 1550, COP 1838 Bench Drilling |
R32 (1 1/4") | 525 | 52 | 5.7 | - |
| T38 (1 1/2") | 525 | 52 | 5.9 | - | |
| T45 (1 3/4") | 525 | 52 | 6.1 | - | |
| T51 (2") | 525 | 52 | 6.5 | - | |
| Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238 Drifting |
R32 (1 1/4") | 435 | 38 | 3.6 | - |
| R38 (1 1/2") | 435 | 38 | 3.9 | - | |
| T38 (1 1/2") | 435 | 38 | 3.8 | - | |
| Atlas Copco COP 1440, COP1838 Bolting - SDA |
R32 (1 1/4") | 640 | 52 | 7.5 | - |
| Atlas Copco COP 1440, COP 1838 Bolting- SDA, IRIA |
R32 (1 1/4") | 640 | 52 | 9.1 | - |
| R38 (1 1/2") | 640 | 52 | 8.9 | - | |
| Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238 Bench Drilling |
R32 (1 1/4") | 585 | 38 | 4.2 | - |
| R38 (1 1/2") | 525 | 38 | 4.3 | - | |
| T38 (1 1/2") | 525 | 38 | 4.3 | - | |
| Atlas Copco COP 1440, COP1550, COP 1638, COP 1838 Bolting, Drifting |
T38 (1 1/2") | 435 | 38 | 3.9 | - |
| Atlas Copco COP 1638, COP 1838AW Drifting |
R38 (1 1/2") | 455 | 38 | 4.1 | - |
| T38 (1 1/2") | 455 | 38 | 4.1 | - | |
| Atlas Copco COP 1638, COP 1838AW Longhole Drilling |
R32 (1 1/4") | 525 | 38 | 4.3 | - |
| T38 (1 1/2") | 525 | 38 | 4.5 | - |
KINGDRILLING shank adapter application:
1. Be used for bench blasting, underground mining, and tunneling operations.
2. The Kingdrilling shank adapter effectively transfers torque, feed force, impact energy, and flushing medium to the drill string.
3. Specially selected alloy steel, which is additionally carburized, ensures the strong impact power of current rock drills.
4. Various shanks can be created based on the samples and model of the rock drill.
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
3. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
4. Shipping way.
Sample order: We suggest Courier express like DHL/UPS/FEDEX or by air/by train.
Bulk order: We suggest by air or by sea.
5. After Services.
1. Our sales team will response for your question within 24 hours (Holidays Excluded)
