Product Details:
|
| Material: | Tungsten Carbide & Steel | Processing Type: | Forging |
|---|---|---|---|
| Machine Type: | Downhole Tools | Use: | Blasting |
| Type: | Tapered Button Bit | Color: | Blue,Golden,other Color Available,Blue And Yellow |
| Product Name: | Taper Rock Drill Bit | Application: | Rock Drilling |
| Advantage: | High Performance Rock Drill Bit | Usage: | Hole Drilling |
| Face: | Flat / Convex / Concave | Key Words: | Taper Bit, Tapered Bit, Taper Drill Bits |
| High Light: | 38mm Tapered Button Bits,7Degree Tapered Button Bits,Rock Drilling Tapered Button Bits |
||

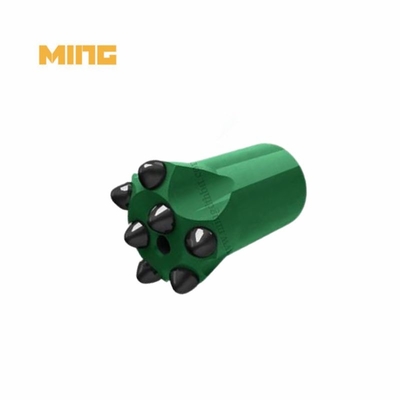

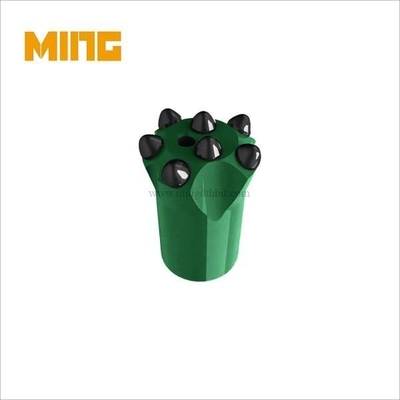

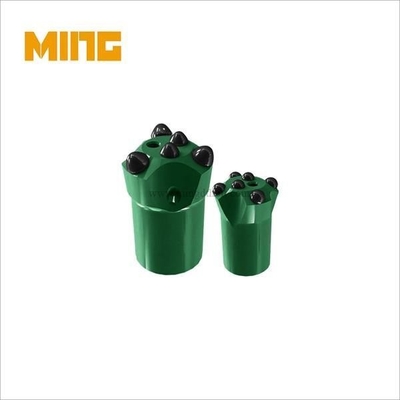

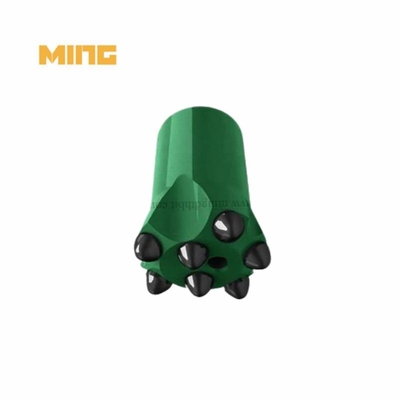

Product name: 38mm 7 Degree Tapered Button Bits For Rock Drilling With Pneumatic Rock Drill Rod
Product category: DTH taper drill bit
Button Shape: normally is ballistic button, also available for spherical button
Matched connection: 7 degree taper
Diameter: 38mm
KINGDRILLING DTH taper drill bit description:
To accomplish drilling operations through the taper connection on the drill bit and drill pipe, the tapered button drill bit is mostly utilized in conjunction with a pneumatic rock drill and a tapered drill pipe. Cone drill bits are mostly utilized in secondary crushing, drifting, anchoring, and other fields in mines. They are excellent for drilling hard rock. The cross and chisel drill bits were updated to create the taper drill bit. The drill bit has a long service life and good performance since it uses a hot-dip skirt and tungsten carbide bit. Twelve, eleven, and seven degrees are the standard taper angles for tapered drill bits.
Our company offers small hole rock drill bits: Tapered Drill Bit is different with thread button bit as long hole bit to use taper match with bit rod to be used for air leg or hand held jack hammerdriller in stone quarrying, and mineral.
KINGDRILLING tapered drill bits parameters:
| Model | Bit Dia.(mm) | Tip size (mm) | Taper | Weight(kg) |
| MZ0732-7 | 32 | 5×7 2×7 | 7" | 0.3 |
| MZ0833-7 | 33 | 6×7 2×7 | 7" | 0.4 |
| MZ0735-7 | 35 | 5×8 2×7 | 7" | 0.4 |
| MZ0737-7 | 37 | 5×8 2×8 | 7" | 0.4 |
| MZ0438-7 | 38 | 3×9 1×9 | 7" | 0.3 |
| MZ0440-7 | 40 | 3×9 1×9 | 7" | 0.4 |
| MZ0741-7 | 41 | 5×9 2×7 | 7" | 0.5 |
| MZ0442-7 | 42 | 3×9 1×9 | 7" | 0.4 |
| MZ0543-7 | 43 | 3×9 2×9 | 7" | 0.4 |
| MZ0528-11 | 28 | 4×7 1×7 | 11" | 0.2 |
| MZ0530-11 | 30 | 4×7 1×7 | 11" | 0.2 |
| MZ0532-11 | 32 | 3×8 2×7 | 11" | 0.2 |
| MZ0632-11 | 32 | 4×7 2×7 | 11" | 0.2 |
| MZ0732-11 | 32 | 5×7 2×7 | 11" | 0.2 |
| MZ0734-11 | 34 | 5×8 2×7 | 11" | 0.3 |
| MZ0536-11 | 36 | 3×8 2×8 | 11" | 0.3 |
| MZ0636-11 | 36 | 4×8 2×8 | 11" | 0.3 |
| MZ0736-11 | 36 | 5×8 2×8 | 11" | 0.3 |
| MZ0738-11 | 38 | 5×8 2×8 | 11" | 0.4 |
| MZ0741-11 | 41 | 5×9 2×8 | 11" | 0.4 |
| MZ0732-12 | 32 | 5×7 2×7 | 12" | 0.3 |
| MZ0735-12 | 35 | 5×8 2×7 | 12" | 0.4 |
| MZ0737-12 | 37 | 5×8 2×8 | 12" | 0.4 |
| MZ0741-12 | 41 | 5×9 2×8 | 12" | 0.5 |
| MZ0743-12 | 43 | 5×9 2×8 | 12" | 0.5 |
| MZ0745-12 | 45 | 5×9 2×9 | 12" | 0.5 |
How to order
Tapered Drill Bits: Bit Diameter + Taper Degree + Socket Diameter.
Every drill bit is unique in size and design to maximize its use, accommodate a greater variety of drilling circumstances, and satisfy various project specifications.
The taper bit and the taper drill pipe must fit perfectly and have the same taper in order to guarantee a regular service life.
Kingdrilling tapered drill button bits application:
1. Mineral
2. Tunneling & Underground Project
3. Construction Drill And Blast
4. Quarrying & Aggregate
5. Hydropower Project
Kingdrilling tapered drill button bits advantages:
1. You can boost production and have an excellent service life with carbureted rods.
2. The enhanced wear resistance of tapered drill bits results in reduced prices.
3. A large selection of variations and Oems can readily satisfy demand.
4. Complete control over production duties is ensured by high-quality products.
FAQ:
1.What is the general delivery time?
15 working days for DTH bits.
20-25 working days for DTH hammer
3-5 working days for ex stock items.
2. Competitive price:
A:KINGDRILLING factory can supply you the lowest price due to direct sale to customers without distributor.
3. How to choose the suitable head face of the DTH drill bit?
a. Concave:
Suitable for all kinds of formation, especially for deep well drilling, perpendicularity of the hole is wonderful.
b. Convex:
Suitable for the formation of moderate hardness stratum, drilling efficiency is good, borehole perpendicularity is moderate.
c. Flat:
Suitable for special hard formation stratum, especially for fracture, crack spacing and complex formation drilling effect is very good, has the good perpendicularity of the borehole.
4. Product feature
Kingdrilling DTH tools are forged by advanced electron-hydraulic forging hammer, and harness process is managed by multipurpose furnace heat treatment.
