Product Details:
|
| Certification: | ISO9001 | Material: | Carbide,Carbon Steel |
|---|---|---|---|
| Machine Type: | Drilling Equipment | Processing Type: | Forging |
| Use: | Ore Mining,Rock Drilling | Type: | Drill Bit |
| Application: | Water Well Drilling And Rock Drilling | Color: | Golden,Red,blue,glod(as You Need) |
| Product Name: | Eccentric Drill Bits | Advantage: | High Performance,High-efficiency,Widely Used Hard Rocks And Have Good Penetration |
| Usage: | Hole Drilling,Borehole Drilling | Name: | Eccentric Overburden Drilling System |
| Packing: | Wooden Case,Wooden Box | Formation: | Medium,soft |
| Quality: | High Level,Guaranteed | Item: | DTH Bit ODEX Eccentric Overburden Casing System |
| Standard: | ISO-9001 | ||
| High Light: | Down Hole Hammer Casing Drilling Bit,Waterwell Casing Drilling Bit,Symmetric down hole hammer bits |
||
Product Description:

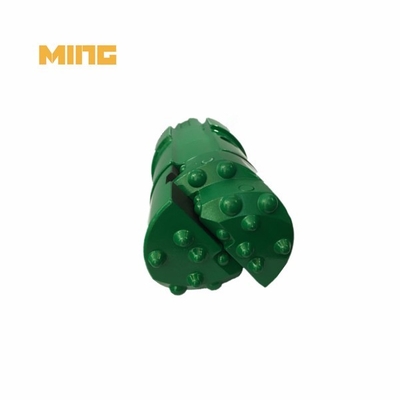

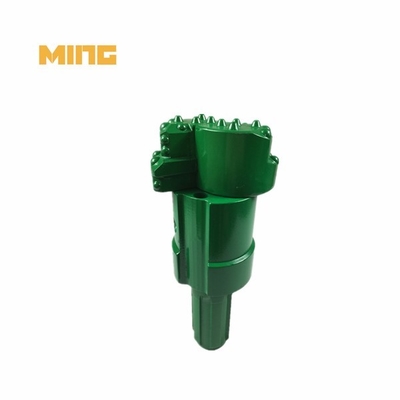

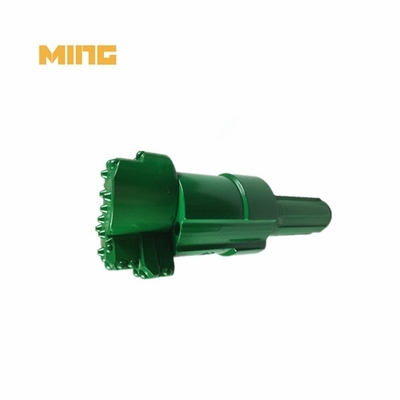

Product name: 219mm MRE Rotoring wing bit symmetric casing drilling bit in waterwell drilling
Materials: Alloy steel, Carbide alloy
The overburden drilling systems are designed for economic cost of drilling in simultaneous casing advancement.
Product components:
Pilot bit+2PCS rotor wings+casing shoe
Production details:
| Model | Hole dia (mm) | Weight (KG) | Closed dia.(mm) | Pilot dia.(mm) | Length (mm) | Case dia(OD*ID) | Spline |
| MK-MRE90 | 125 | 16 | 90 | 100 | 360 | 114*102 | MACH33,DHD3.5 |
| MK-MRE115 | 155 | 30 | 115 | 125 | 510 | 139*127 | DHD340,SD4.QL4 |
| MK-MRE140 | 188 | 52 | 140 | 151 | 570 | 168*153 | DHD350,SD5,QL5 |
| MK-MRE165 | 215 | 95 | 166 | 178 | 690 | 194*181 | DHD360,SD6,QL6 |
| MK-MRE190 | 238 | 108 | 190 | 203 | 690 | 219*206 | DHD360,SD6,QL6 |
| MK-MRE215 | 276 | 140 | 215 | 236 | 720 | 254*240 | DHD380,SD8,QL8 |
| MK-MRE235 | 293 | 160 | 236 | 251 | 730 | 273*254 | DHD380,SD8,QL8 |
| MK-MRE240 | 293 | 168 | 241 | 256 | 730 | 273*260 | DHD380,SD8,QL8 |
How to order:
Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
Working principle:
At clockwise condition, reamer bit expanded to bring the casing tube into hole. After finished, reamer bit closed anticlockwise and then can be lift up by the drilling machines. This casing drilling bit is especially suitable for diameter 114-273mm.
Application Range:
It is suitable for drilling water wells, geothermal wells, short micro piles ,medium mini-type grouting hole of building , dam and harbor project .
RFQ:
What is overburden fill?
Overburden Soil is a general, unprocessed, fill material that can contain a variety of different materials, depending on where it is sourced. Overburden Soil can contain sand, rocks, clay and stones, and will typically lack the organic material and nutrients found in topsoil.
What is odex drilling?
ODEX is an adaptation of the air-operated down-the-hole hammer. It uses a swing-out eccentric bit to ream the bottom of the casing. Cuttings blow up through the drive sub and casing annulus to a swivel conducting them to a sample collector or onto the ground. Rapid removal of cuttings.
