Product Details:
|
| Material: | High Manganese Steel,Carbide | Use: | Ore Mining,Mining & Water Well Drilling,Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Symmetrix Casing,Odex Overburden System | Machine Type: | Drilling Equipment |
| Processing Type: | Forging | Product Name: | Concentric Casing System |
| Color: | Gold,Request,Yellow,Red | Application: | Water Well Drilling,mining Or Welling Drilling |
| Usage: | Hole Drilling | Advantage: | High Performance,High-efficiency,Widely Used Hard Rocks And Have Good Penetration |
| Name: | ODEX System (eccentric Overburden System) | Hammer Type: | Overburden Drilling System |
| Button Shape: | Spherical/Ballistic/Parabolic/Sharp/Flat | Advantages: | High Performance,High Quality And Factory Prices |
| High Light: | MRING Symmetric Casing Drilling System Bit, 114mm Overburden Casing Drilling System Bits | ||

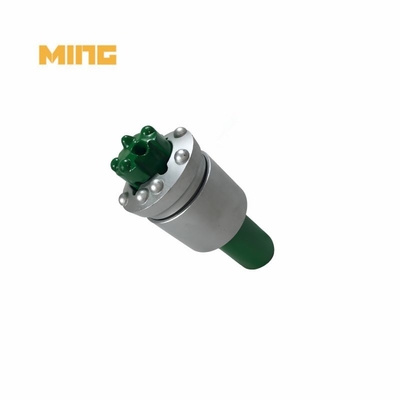

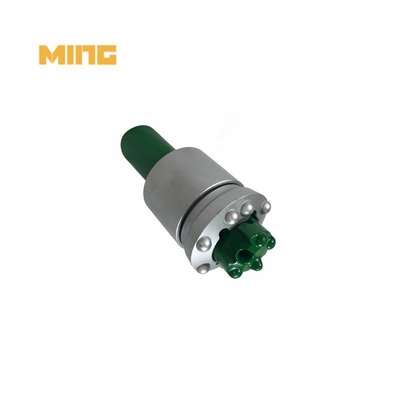

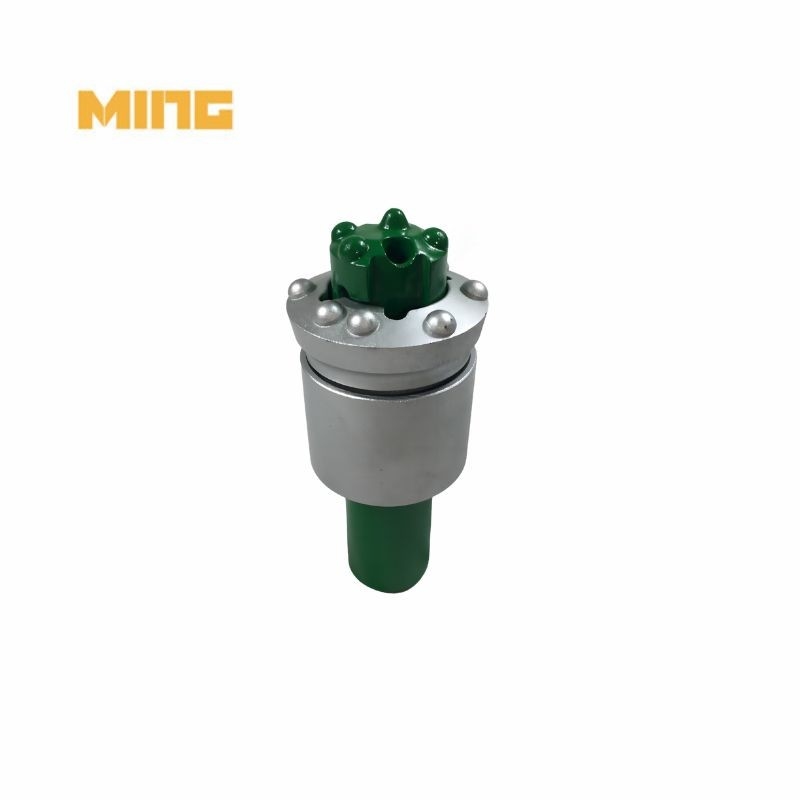

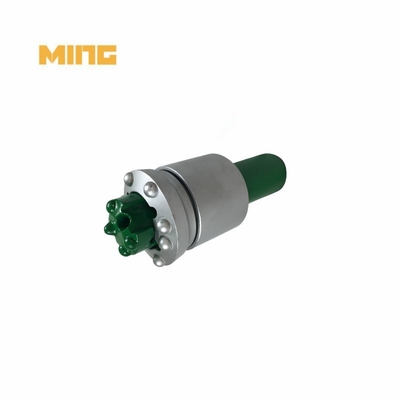

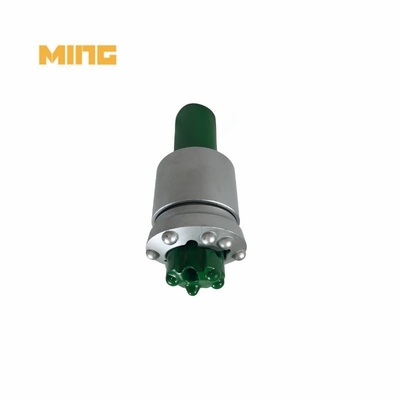

Product name: 114mm MRING Overburden Symmetric Casing Drilling System Bit For Civil Engineering
Product category: Overburden Symmetric Casing Drilling System Bit
MRING symmetric casing drilling tools Advantages
1. Straight Holes and Fast Penetration Rate
2. Less Torque in all ground conditions
3. Easy System to lock and Unlock Ring
4. Drilling at any angle required
5. More Holes and Low investment
Speed is of the essence, and the MRING Overburden Casing Drilling System Bit doesn't disappoint. Its fast driving speed enables you to tackle projects with unprecedented efficiency, reducing valuable time spent on drilling operations. Experience optimized productivity and complete tasks in record time.
MRING symmetric casing drilling tools technical parameters:
| Model | External Dia.(mm) | Casing Dia.(OD*ID) | Spline |
| MK-MRING90 | 125 | 114*102 | MACH33, DHD3.5 |
| MK-MRING115 | 155 | 139*127 | DHD340, SD4, QL4 |
| MK-MRING140 | 188 | 168*153 | DHD350, SD5, QL5 |
| MK-MRING165 | 215 | 194*181 | DHD360, SD6, QL6 |
| MK-MRING190 | 238 | 219*206 | DHD360, SD6, QL6 |
| MK-MRING215 | 276 | 254*240 | DHD380, SD8, QL8 |
| MK-MRING235 | 293 | 273*254 | DHD380, SD8, QL8 |
| MK-MRING240 | 293 | 273*260 | DHD380, SD8, QL8 |
| MK-MRING280 | 345 | 323*303 | SD10 |
| MK-MRING315 | 375 | 355*335 | SD10 |
| MK-MRING365 | 432 | 406*387 | N120, N125, SD12 |
| MK-MRING460 | 530 | 508*483 | N125, N180 |
| MK-MRING510 | 580 | 559*533 | N180 |
| MK-MRING560 | 635 | 610*584 | N180 |
| MK-MRING610 | 695 | 660*632 | N240 |
| MK-MRING660 | 735 | 711*685 | N240 |
| MK-MRING710 | 785 | 762*736 | N240 |
| MK-MRING745 | 838 | 813*780 | N240 |
| MK-MRING810 | 886 | 864*838 | N240, N240S |
| MK-MRING860 | 935 | 914*884 | N240S |
| MK-MRING910 | 980 | 965*935 | N240S |
| MK-MRING960 | 1038 | 1016*986 | N240S, M330 |
| MK-MRING1010 | 1090 | 1067*1041 | M330 |
How to order:
Casing Tube OD & ID + Ring Bit Diameter + Hammer Shank + Maximal Normal Bit Diameter +
Casings and Casing Shoes Installation Method (if by threads, threads standard must be offered)
Other size of MRING system is available upon customer's request
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. What is hole hammer?
A pneumatic drilling tool that runs on compressed air is the down-the-hole (DTH) pneumatic hammer. Drilling in hard rock strata, gravel, and pebbles is appropriate. It is frequently utilized in the construction of bridges, pile foundations for buildings, mining, geological investigation, hydrological wells, and other industries.
4. What is overburden fill?
Overburden Soil is an all-purpose, raw fill material that, depending on where it comes from, may contain a wide range of materials. In general, overburden soil lacks the organic matter and nutrients present in topsoil and can comprise sand, pebbles, clay, and stones.
5. How far can you directional bore?
What are the minimum and maximum lengths of crossing? Maximum lengths and hole diameters are determined by project specific geotechnical conditions however effective outside range for heavy rig horizontal directional drilling is 3,000 m
