Product Details:
|
| Material: | Carbon Steel,High Manganese Steel,Carbide | Use: | Well Drilling,Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Symmetrix Casing,Odex Overburden System | Machine Type: | Drilling Tool,Drilling Equipment |
| Processing Type: | Forging | Product Name: | Concentric Casing System,odex Drilling System |
| Color: | Gold,Request,Yellow,Red | Application: | Quarry,construction,mining,water Well Drilling,mining Or Welling Drilling |
| Usage: | Mining&Construction&Water Well DrillingHole Drilling,Mining&Construction&Water Well Drilling | Advantage: | High Performance,High-efficiency |
| Model Type: | Cop,Halco,DHD,Mission,NUMA | Name: | Overburden Concentric Casing Drilling System |
| Item: | Drilling Hammer Bit Eccentric Overburden Systems,Overburden Drilling Casing System | Hammer Type: | DHD3.5 DHD340 DHD350 DHD360 DHD380 DHD110 DHD112,SD-6,QL60 |
| Button Shape: | Domed Buttons,Spherical/Ballistic/Parabolic/Sharp/Flat,and Ballistic Shapes Buttons | Advantages:: | High Strength,hign Abrasion Risistance,High Performance,High Quality And Factory Prices |
| High Light: | 345mm Overburden Casing Drilling System, Overburden Casing Drilling System, Symmetric Casing Drilling Bit | ||

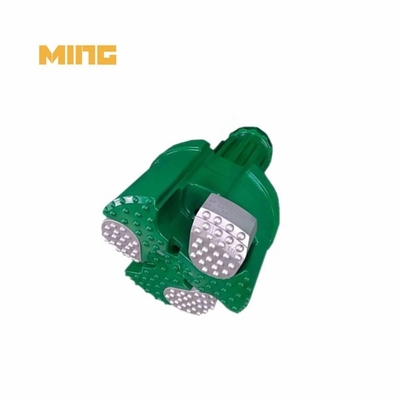

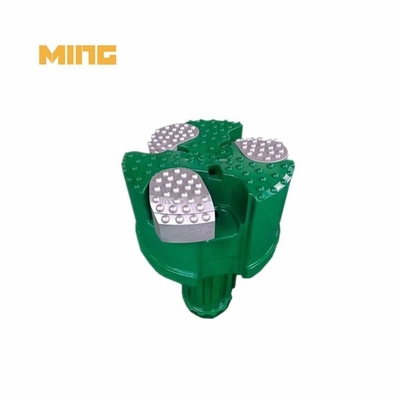

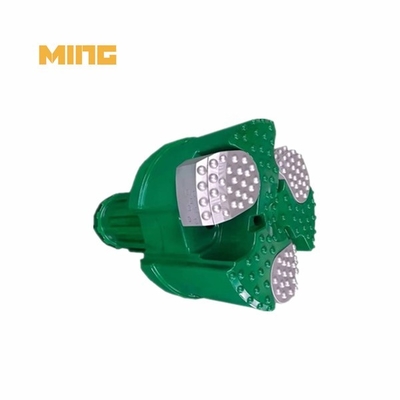

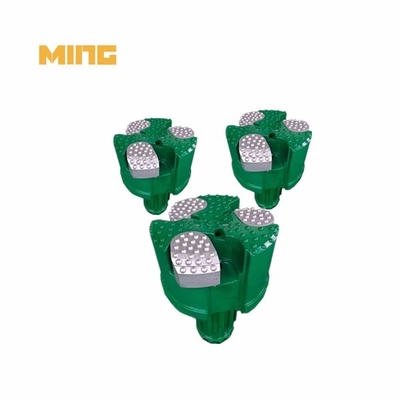

Product name: 345mm MRS280 Overburden Casing Drilling System Bit For Quarry,Construction,Mining,Water Well Drilling
OD of casing pipe: 280mm
They are designed for economic cost of drilling in simultaneous casing advancement. The wings are retracted by reverse rotation.
Choose our MRS Overburden Casing Drilling System Bit and experience the difference that quality, expertise, and personalized service can make. Don't compromise on your drilling needs – invest in reliability and efficiency.

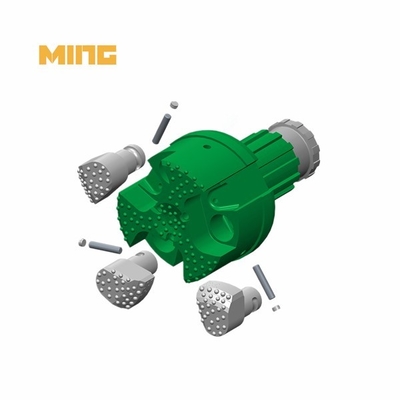

Product components:
1. Pilot bit+3PCS wiggle wings+casing shoe
2. Pilot bit+4PCS wiggle wings+casing shoe
Production details:
| Model | Hole dia.(mm) | Weight (KG) | Closed dia(mm) | Pilot dia (mm) | Total length (mm) | Case Dia (OD*ID) | Spline |
| MK-MRS190 | 238 | 80 | 190 | 203 | 550 | 219*206 | DHD360,QL6,SD6 |
| MK-MRS215 | 276 | 100 | 215 | 236 | 590 | 254*240 | DHD380,QL8,SD8 |
| MK-MRS235 | 293 | 110 | 236 | 251 | 590 | 273*254 | DHD380,QL8,SD8 |
| MK-MRS240 | 293 | 115 | 241 | 256 | 590 | 273*260 | DHD380,QL8,SD8 |
| MK-MRS280 | 345 | 180 | 280 | 300 | 740 | 323*302 | SD10 |
| MK-MRS315 | 373 | 240 | 315 | 336 | 1050 | 356*337 | N120 |
| MK-MRS365 | 432 | 350 | 365 | 381 | 1100 | 406*387 | N120,N125 |
| MK-MRS410 | 478 | 460 | 412 | 430 | 1100 | 457*435 | N125 |
| MK-MRS460 | 530 | 585 | 460 | 475 | 1100 | 508*483 | N125,SD18 |
| MK-MRS510 | 580 | 860 | 509 | 527 | 1180 | 559*533 | N180,SD18 |
| MK-MRS560 | 635 | 910 | 560 | 581 | 1180 | 610*584 | N180,SD18 |
| MK-MRS610 | 695 | 1100 | 600 | 630 | 1200 | 660*632 | N240 |
| MK-MRS660 | 735 | 1200 | 656 | 681 | 1207 | 711*685 | N240 |
| MK-MRS710 | 785 | 1480 | 710 | 730 | 1207 | 762*736 | N240 |
| MK-MRS745 | 838 | 1650 | 745 | 776 | 1207 | 813*780 | N240 |
How to order:
Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
Other size of MRS system is available upon customer's request
RFQ:
1. What is odex drilling?
ODEX is an adaptation of the air-operated down-the-hole hammer. It uses a swing-out eccentric bit to ream the bottom of the casing. Cuttings blow up through the drive sub and casing annulus to a swivel conducting them to a sample collector or onto the ground. Rapid removal of cuttings.
2. How much PSI do I need for air tools?
between 70 and 90 PSI
Most air tools require between 70 and 90 PSI. Any light-to-medium-duty air compressor can easily handle 90 PSI, but you always want the compressor to supply more flow than needed. Pro Tip: Always respect a PSI rating. If you don't supply enough air volume, the tool won't operate correctly.
3. How does a casing advancer Work?
The Casing Advancer has been designed to allow drilling and casing to be carried out at the same time as one integral operation. This feature eliminates the need to drill the large diameter hole with a Rock Bit, pull the drill rod string and Rock Bit from the hole and then ream the casing back into the hole.
