Product Details:
|
| Material: | Tungsten Carbide & Steel | Processing Type: | Forging |
|---|---|---|---|
| Machine Type: | Downhole Tools | Use: | Blasting |
| Type: | Tapered Button Bit | Color: | Blue,Golden,other Color Available,Blue And Yellow |
| Product Name: | Taper Rock Drill Bit | Application: | Rock Drilling |
| Advantage: | High Performance Rock Drill Bit | Usage: | Hole Drilling |
| Face: | Flat / Convex / Concave | Key Words: | Taper Bit, Tapered Bit, Taper Drill Bits |
| High Light: | 43mm Tapered Button Bits,12 Degree Tapered Button Bits,Geological Exploration Tapered Button Bits |
||

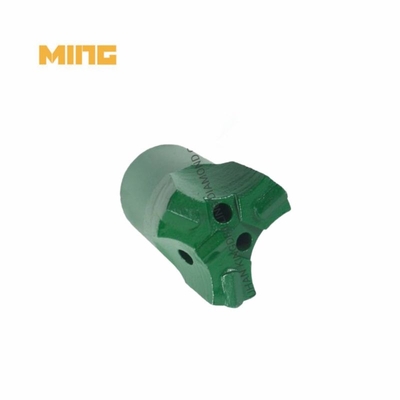

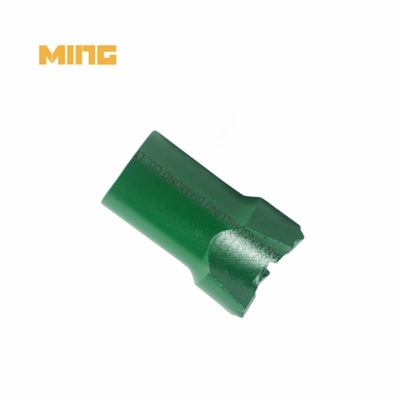

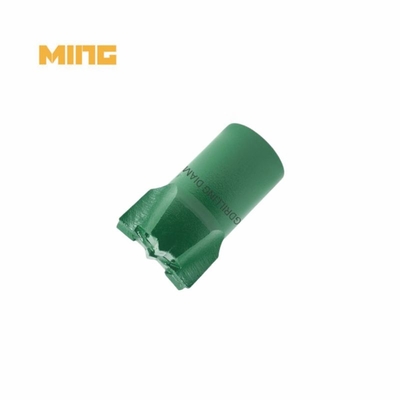

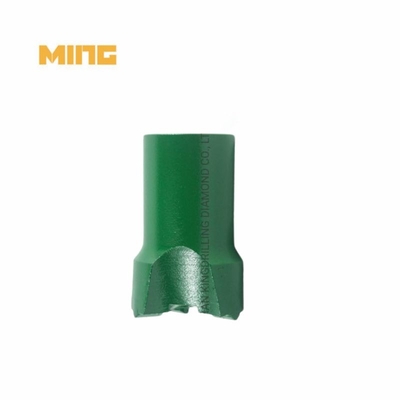

Product name: 12 Degree Taper 43mm Down The Hole Tapered Button Bits For Geological Exploration
Matched connection: 12 degree taper
Diameter: 41mm
KINGDRILLING DTH taper drill bit description:
Tungsten Carbide Cutting Tools. Taper Drill Bits For Mining Parts can be used in every rock drilling condition, regardless of drill rig model or rock performance. In general, chisel bits are used for hard rock, whereas cross bits and button bits are used for fissured rock.
Taper Drill Bits For Mining Parts are mostly used for digging into mine laneways and blasting holes in all drilling operations when paired with a taper drill rod. To extend the operating life of the drill bits, we use a different alloy for each rock type.
Taper drill bits are widely utilized in metallurgical mines, geological exploration, water conservancy construction, electricity, transportation, tunnels, quarries, national defense stone projects, and other applications.
KINGDRILLING tapered drill bits parameters:
| Model | Bit Dia. (mm) | Tip size (mm) | Taper | Weight (kg) |
| MZ0732-7 | 32 | 5×7 2×7 | 7" | 0.3 |
| MZ0833-7 | 33 | 6×7 2×7 | 7" | 0.4 |
| MZ0735-7 | 35 | 5×8 2×7 | 7" | 0.4 |
| MZ0737-7 | 37 | 5×8 2×8 | 7" | 0.4 |
| MZ0438-7 | 38 | 3×9 1×9 | 7" | 0.3 |
| MZ0440-7 | 40 | 3×9 1×9 | 7" | 0.4 |
| MZ0741-7 | 41 | 5×9 2×7 | 7" | 0.5 |
| MZ0442-7 | 42 | 3×9 1×9 | 7" | 0.4 |
| MZ0543-7 | 43 | 3×9 2×9 | 7" | 0.4 |
| MZ0528-11 | 28 | 4×7 1×7 | 11" | 0.2 |
| MZ0530-11 | 30 | 4×7 1×7 | 11" | 0.2 |
| MZ0532-11 | 32 | 3×8 2×7 | 11" | 0.2 |
| MZ0632-11 | 32 | 4×7 2×7 | 11" | 0.2 |
| MZ0732-11 | 32 | 5×7 2×7 | 11" | 0.2 |
| MZ0734-11 | 34 | 5×8 2×7 | 11" | 0.3 |
| MZ0536-11 | 36 | 3×8 2×8 | 11" | 0.3 |
| MZ0636-11 | 36 | 4×8 2×8 | 11" | 0.3 |
| MZ0736-11 | 36 | 5×8 2×8 | 11" | 0.3 |
| MZ0738-11 | 38 | 5×8 2×8 | 11" | 0.4 |
| MZ0741-11 | 41 | 5×9 2×8 | 11" | 0.4 |
| MZ0732-12 | 32 | 5×7 2×7 | 12" | 0.3 |
| MZ0735-12 | 35 | 5×8 2×7 | 12" | 0.4 |
| MZ0737-12 | 37 | 5×8 2×8 | 12" | 0.4 |
| MZ0741-12 | 41 | 5×9 2×8 | 12" | 0.5 |
| MZ0743-12 | 43 | 5×9 2×8 | 12" | 0.5 |
| MZ0745-12 | 45 | 5×9 2×9 | 12" | 0.5 |
How to order
Tapered Drill Bits: Bit Diameter + Taper Degree + Socket Diameter.
Product application:
Mining, Quarrying, Tunneling, Construction, Geological Exploration, Water-well Drilling, Oilfield & Gas Industries.
Kingdrilling tapered chisel bits advantages:
- Crafted with high quality raw material ensuring exceptional durability and reliability
- Superior wear resistance guarantees long-lasting performance in various drilling applications
- Comprehensive production chain ensures strict quality control and consistent product excellence
- Prompt and efficient service to meet your drilling needs with precision and effectiveness
- Competitively priced without compromising on quality, providing cost-effective drilling solutions
After Sales Service
1.Pre-sale service:
Act as a good adviser and assistant of clients enable them to get rich and generous returns on their investments . 1.Select equipment model. 2.Design and manufacture products according to client's special requirement ; 3.Train technical personnel for clients.
2.Services during the sale:
1.Pre-check and accept products ahead of delivery.
2. Help clients to draft solving plans.
3.After-sale services:
Provide considerate services to minimize clients' worries.
1.Complete After-sales service,professional engineers available to service machinery at home or oversea.
2. 24 hours technical support by e-mail.
3.Other essential technological service.
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
3. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
4. Competitive price:
A: KINGDRILLING factory can su pply you the lowest price due to direct sale to customers without distributor.
5. Product feature
Kingdrilling DTH tools are forged by advanced electron-hydraulic forging hammer, and harness process is managed by multipurpose furnace heat treatment.
