Product Details:
|
| Material: | Carbon Steel,Carbide | Use: | Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Symmetrix Casing | Machine Type: | Drilling Tool |
| Processing Type: | Forging | Product Name: | Concentric Casing System |
| Color: | Gold,Request,Yellow,Red | Application: | Construction,mining Or Welling Drilling |
| Usage: | Hole Drilling,Mining&Construction&Water Well Drilling | Advantage: | High Performance,Widely Used Hard Rocks And Have Good Penetration |
| Model Type: | Cop,Halco,DHD,Mission,NUMA | Name: | ODEX System (eccentric Overburden System) |
| Item: | Drilling Hammer Bit, Concentric Casing Drilling System,Overburden Drilling Casing System | Hammer Type: | Overburden Drilling System |
| Standard: | ISO9001 | Advantages: | High Performance,High Quality And Factory Prices |
| High Light:: | Symmetric Casing Drilling Bit, 238mm Overburden Casing Drilling Bit, MRS Concentric Casing Drilling S |

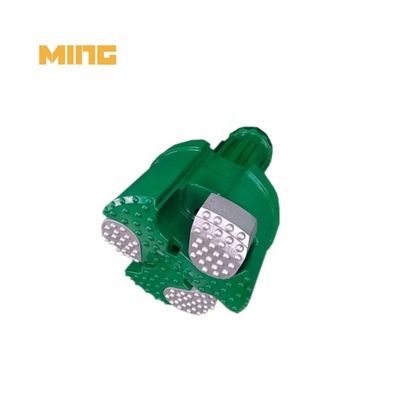

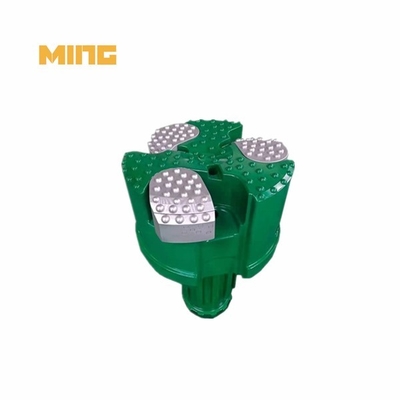

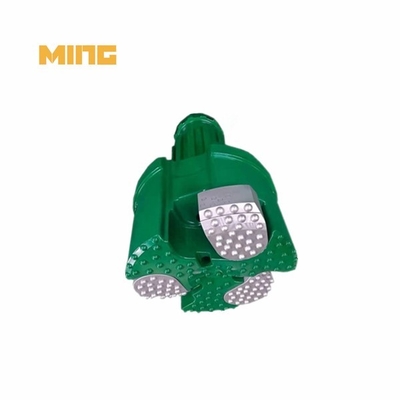

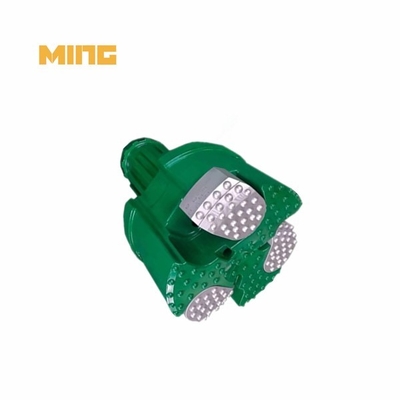

Product name: 238mm MRS190 Concentric Symmetric Casing Drilling System Hole Opener Drill Bit For Rock Formation Drilling
Casing pipe OD: 190mm
It is recommended to drill in rock formation where contains some ovals and fractures.
Designed with high drilling efficiency in mind, MRS Overburden Casing Drilling System bit effortlessly powers through various tough materials. Whether you are working with concrete, rock, or any other challenging surface, this drill bit delivers exceptional performance, making your drilling tasks a breeze.
Product components:
1. Pilot bit+3PCS wiggle wings+casing shoe
2. Pilot bit+4PCS wiggle wings+casing shoe
Production details:
| Model | Hole dia.(mm) | Weight (KG) | Closed dia (mm) | Pilot dia (mm) | Total length (mm) | Case Dia(OD*ID) | Spline |
| MK-MRS190 | 238 | 80 | 190 | 203 | 550 | 219*206 | DHD360,QL6,SD6 |
| MK-MRS215 | 276 | 100 | 215 | 236 | 590 | 254*240 | DHD380,QL8,SD8 |
| MK-MRS235 | 293 | 110 | 236 | 251 | 590 | 273*254 | DHD380,QL8,SD8 |
| MK-MRS240 | 293 | 115 | 241 | 256 | 590 | 273*260 | DHD380,QL8,SD8 |
| MK-MRS280 | 345 | 180 | 280 | 300 | 740 | 323*302 | SD10 |
| MK-MRS315 | 373 | 240 | 315 | 336 | 1050 | 356*337 | N120 |
| MK-MRS365 | 432 | 350 | 365 | 381 | 1100 | 406*387 | N120,N125 |
| MK-MRS410 | 478 | 460 | 412 | 430 | 1100 | 457*435 | N125 |
| MK-MRS460 | 530 | 585 | 460 | 475 | 1100 | 508*483 | N125,SD18 |
| MK-MRS510 | 580 | 860 | 509 | 527 | 1180 | 559*533 | N180,SD18 |
| MK-MRS560 | 635 | 910 | 560 | 581 | 1180 | 610*584 | N180,SD18 |
| MK-MRS610 | 695 | 1100 | 600 | 630 | 1200 | 660*632 | N240 |
| MK-MRS660 | 735 | 1200 | 656 | 681 | 1207 | 711*685 | N240 |
| MK-MRS710 | 785 | 1480 | 710 | 730 | 1207 | 762*736 | N240 |
| MK-MRS745 | 838 | 1650 | 745 | 776 | 1207 | 813*780 | N240 |
How to order:
Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
RFQ:
1. What is casing design?
The design of a casing program involves the selection of setting depths, casing sizes and grades of steel that will allow for the safe drilling, and completion of a well to the desired producing configuration.
2. How does a casing advancer Work?
Drilling and casing can be done simultaneously as a single, integrated operation thanks to the Casing Advancer's design. This feature saves time and effort by removing the drill rod string and rock bit from the big diameter hole before reaming the casing back into the hole.
3. How far can you directional bore?
What are the minimum and maximum lengths of crossing? Maximum lengths and hole diameters are determined by project specific geotechnical conditions however effective outside range for heavy rig horizontal directional drilling is 3,000m
Product manufacturing:
